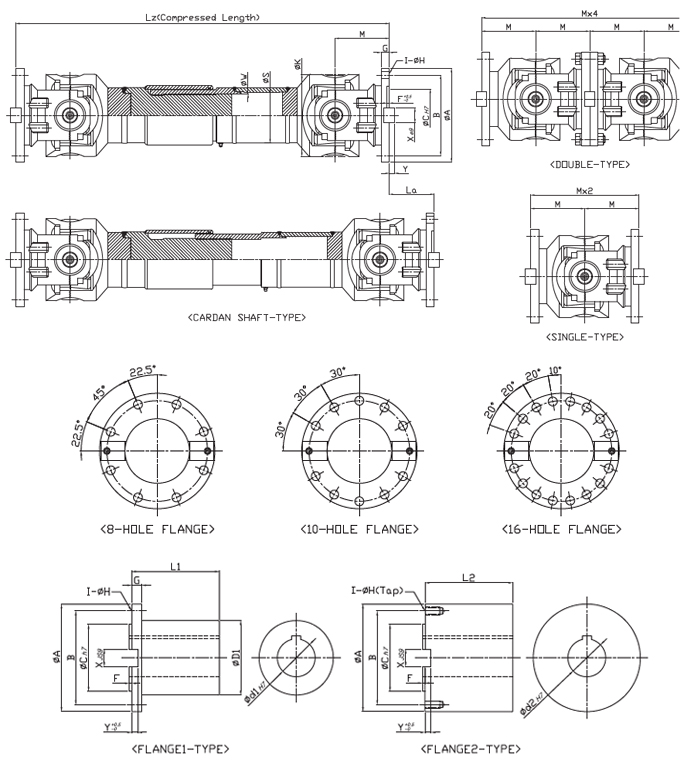

Product name		UK225	UK250	UK285	UK315	UK350	UK390	UK435	UK480	UK550
Bearing	mm	Ø88×218 x124	Ø95×244 x138	Ø110×276 x156	Ø125×304 x176	Customize	Customize	Customize	Customize	Customize
Tcs	kNm	56	80	112	160	224	315	450	630	900
Tdw	kNm	28	40	56	80	112	158	225	315	450
β (angle)	°	15	15	15	15	15	10	10	10	10
A (flange)	mm	225	250	285	315	350	390	435	480	550
K (swing dia.)	mm	225	250	285	315	350	390	435	480	550
B (pcd)	mm	196	218	245	280	310	345	385	425	492
C	mm	140	140	175	175	220	250	280	320	380
F	mm	5	5	7	8	8	8	10	12	12
G	mm	20	25	27	32	35	40	42	47	50
I (qty of holes)	–	8	8	8	10	10	10	16	16	16
H	mm	17	19	21	23	23	25	28	31	31
M	mm	145	165	180	205	225	215	245	275	305
X	mm	32	40	40	40	50	70	80	90	100
Y	mm	9	12.5	15	15	16	18	20	22.5	22.5
S (tube)	mm	152×13.5	168×14	194×16	216.3×18.2	267.4×21.4	273×24.5	318.5×33.3	355.6×35.7	406.4×40.5
W (spline)	–	110-m2.5	130-m3	150-m3	150-m3	185-m5	185-m5	210-m5	210-m5	240-m5
Lz (min.)	mm	890	1010	1090	1240	1310	1430	1620	1820	2035
La (stroke)	mm	100	135	135	170	170	170	170	190	210
G	kg	129	214	272	406	493	732	1055	1468	2209
Gr	kg	46.1	53	70	88.9	130	150	234	281.6	365.4
d1 (max.)	mm	105	115	130	155	170	190	215	235	275
D1 (max.)	mm	172	191	215	248	278	309	344	379	446
L1	mm	160	175	200	235	255	285	325	355	415
d2 (max.)	mm	140	155	175	195	215	240	270	300	340
L2	mm	210	235	270	300	330	370	405	450	510

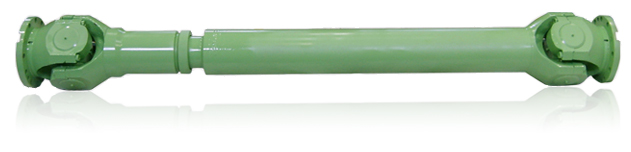

UK-TYPE
