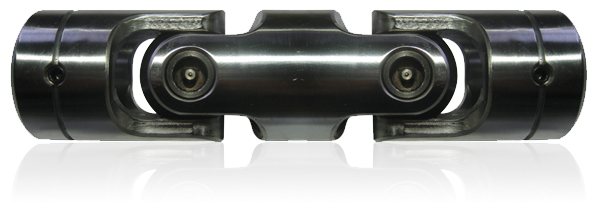

Cross-pin TYPE (UD-type)

Product name UD10 UD12 UD14 UD16 UD20 UD25 UD30 UD35 UD40 UD45 UD50
Allowable conditional variable 80,000 121,000 151,000 200,000 273,000 406,000 531,000 711,000 918,000 1,150,000 1,400,000
Max. Speed min¯¹ 2,000 1,800 1,600 1,400 1,000 800 700 600 500 400 300
Tcs Nm 61 100 140 230 390 750 1,100 1,800 2,700 3,500 4,300
Tdw Nm 20 33 46 76 129 248 363 594 891 1,155 1,419
β (angle) ° 30 30 30 30 30 30 30 30 30 30 30

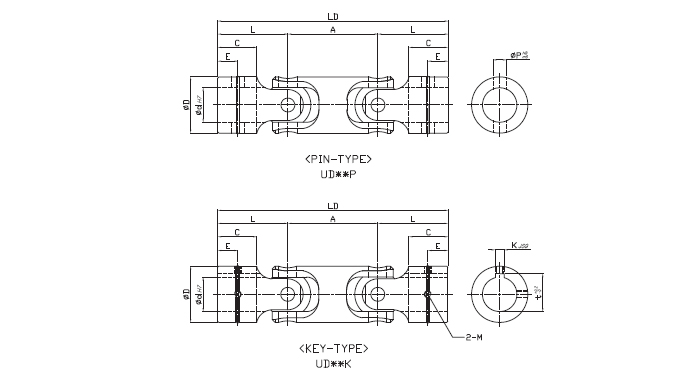

d mm 10 12 14 16 20 25 30 35 40 45 50
D mm 19 23 26 30 36 44 50 59 67 75 83
LD mm 67.5 83 94.5 117.5 139 168 195 224 251 282 304
A mm 25.5 31 35.5 43.5 52 63 73 83 94 106 113
L mm 21 26 29.5 37 43.5 52.5 61 70 78.5 88 95.5
C mm 12 15 17 22 25 30 35 40 45 50 55
E mm 6 7.5 8.5 11 12.5 15 17.5 20 22.5 25 27.5
P mm 4.5 5 5.8 6.5 8 10 11.5 13 14.5 16 17.5
K mm 3 4 5 5 6 8
(7)
8
(7)
10
(10)
12
(10)
14
(12)
14
(12)
t mm 11.4 13.8 16.3 18.3 22.8 28.3
(28)
33.3
(33)
38.3
(38.5)
43.3
(43.5)
48.8
(48.5)
53.8
(53.5)
M mm 5 5 6 6 6 8 8 10 10 10 10
Ts kg 1,300 2,300 2,600 3,900 5,200 8,100 10,000 14,000 18,000 22,000 28,000
Weight g 95 180 250 410 690 1,240 1,775 3,180 4,150 6,225 7,750
  • Refer to" Allowable Conditional Variables" on Page 19 before selecting one.
  • Tcs : Functional limit Torque
  • Tdw : Fatigue Torque
  • β : Maximum deflection angle per joint
  • Ts : Static tensile load
  • | How to Order :

    • UD
    • TYPE
    • 25
    • d
    • K7 or P
    • K(Key width) or P
  • ×
    • D44
    • D
    • 168
    • LD
  • ex ) UD25K7xD44x168
