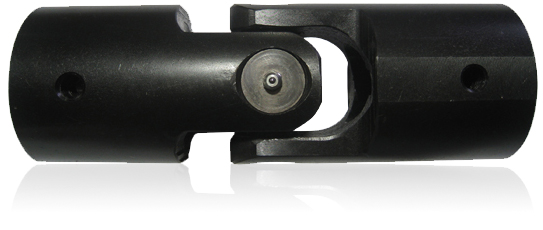

Bearing TYPE (UE-type)

Product name		UE20	UE25	UE30	UE35	UE40	UE50	UE60
Bearing	mm	Ø16×40(24.5)	Ø18×47	Ø20.1×57(35)	Ø25×63.8(41.2)	Ø27×81.75	Ø32×92(57)	Ø37×104(67)
Tcs	Nm	150	250	400	550	1,100	1,800	3,800
Tdw	Nm	110	150	240	400	400	700	1,600
β (angle)	°	25	25	25	25	25	25	25

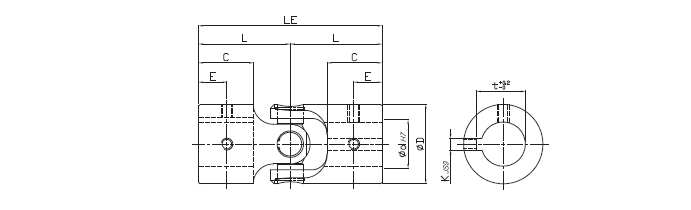

d	mm	20	25	30	35	40	50	60
D	mm	43	54	62	69	96	99	114
LE	mm	86	110	140	200	200	270	300
L	mm	43	55	70	100	100	135	150
C	mm	23	30	40	60	60	80	84
E	mm	11.5	14	20	30	30	40	42
K	mm	6	8	8	10	12	14	18
t	mm	22.8	28.3	33.3	38.3	43.3	53.8	64.4
M	mm	6	8	8	10	12	14	16

Tcs : Functional limit Torque
Tdw : Fatigue Torque
β : Maximum deflection angle per joint

| How to Order :
- UE
- TYPE
- 25
- d
- K8
- K(Key width)
×
- D54
- D
- 110
- LE
