Product name		UC06	UC08	UC10		UC12		UC14		UC16		UC18		UC20
Product name		-D12	-D15	-D19	-D20	-D23	-D24	-D26	-D28	-D30	-D32	-D33	-D36	-D36	-D40
Allowable conditional variable		32,000	48,000	80,000		121,000		151,000		200,000		232,000		273,000
Max. Speed	min¯¹	2,500	2,200	2,000		1,800		1,600		1,400		1,200		1,000
Tcs	Nm	16	35	83	185	140	200	200	500	310	600	400	900	530	1,200
Tdw	Nm	5	12	27	62	46	67	66	167	102	200	132	300	175	400
β (angle)	°	30	30	30		30		30		30		30		30
d	mm	6	8	10		12		14		16		18		20
D	mm	12	15	19	20	23	24	26	28	30	32	32	36	36	40
LC	mm	31	36	42	68	52	84	59	94	74	104	81	120	87	124
L	mm	15.5	18	21	34	26	42	29.5	47	37	52	40.5	60	43.5	62
C	mm	9	10	12	23	15	29	17	31.5	22	34.5	23.5	40	25	40
E	mm	4.5	5	6	9	7.5	14	8.5	15	11	17	11.75	20	12.5	20
P	mm	3	3.5	4.5	–	5	–	5.8	–	6.5	–	7	–	8	–
K	mm	–	–	3 (4)		4 (4)		5 (5)		5 (5)		6 (5)		6 (5)
t	mm	–	–	11.4 (11.5)		13.8 (13.5)		16.3 (16)		18.3 (18)		20.8 (20)		22.8 (22)
M	mm	3	3	5	3	5	4	6	5	6	5	6	6	6	6
KC (Rubber)	mm	–	25	32	32	35	–	40	–	46	–	52	58	58	–
DQ	mm	–	–	–	–	–	–	–	–	–	–	–	–	–	–
EQ	mm	–	–	–	–	–	–	–	–	–	–	–	–	–	–
I	mm	–	–	–	–	–	–	–	–	–	–	–	–	–	–
R	mm	–	–	–	–	–	–	–	–	–	–	–	–	–	–
JQ	mm	–	–	–	–	–	–	–	–	–	–	–	–	–	–
KQ	mm	–	–	–	–	–	–	–	–	–	–	–	–	–	–
tQ	mm	–	–	–	–	–	–	–	–	–	–	–	–	–	–
Ts	kg	530	784	1,300	1,450	2,300	3,300	2,600	4,700	3,900	5,480	4,400	5,940	5,200	8,330
Weight	g	15	30	55	130	110	200	155	400	260	520	345	700	465	1,060

Product name		UC22		UC25		UC30		UC35		UC40		UC45		UC50
Product name		-D40	-D44	-D44	-D50	-D50	-D60	-D60	-D70	-D67	-D80	-D75	-D90	-D83	-100
Allowable conditional variable		344,000		406,000		531,000		711,000		718,000		1,150,000		1,400,000
Max. Speed	min¯¹	900		800		700		600		500		400		300
Tcs	Nm	760	1,440	1,000	2,540	1,500	3,300	2,400	5,300	3,600	10,000	4,800	12,600	5,800	15,200
Tdw	Nm	251	480	330	847	495	1,100	792	1,767	1,188	3,333	1,584	4,200	1,914	5,067
β (angle)	°	30		30		30		30		30		30		30
d	mm	22		25		30		35		40		45		50
D	mm	39	44	44	50	49	60	59	70	67	80	75	90	83	100
LC	mm	94	130	105	140	122	178	140	200	157	228	176	250	191	270
L	mm	47	65	52.5	70	61	89	70	100	78.5	114	88	125	95.5	135
C	mm	27	41	30	43	35	56	40	62	45	70	50	76	55	80
E	mm	13.5	20	15	21	17.5	28	20	31	22.5	35	25	38	27.5	50
P	mm	9	–	10	–	11.5	–	13	–	14.5	–	16	–	17.5	–
K	mm	6 (7)		8 (7)		8 (7)		10 (10)		12 (10)		14 (12)		14 (12)
t	mm	24.8 (25)		28.3 (28)		33.3 (33)		38.3 (38.5)		43.3 (43.5)		48.8 (48.5)		53.8 (53.5)
M	mm	6	6	8	8	8	10	10	10	10	10	10	12	10	12
KC (Rubber)	mm	–	68	68	82	82	–	–	–	–	–	–	–	–	–
DQ	mm	–	–	49	50	56	60	64	70	–	–	–	–	–	–
EQ	mm	–	–	15	20.5	17.5	25	20	28	–	–	–	–	–	–
I	mm	–	–	21.54	23	26.95	28	32	32	–	–	–	–	–	–
R	mm	–	–	4.4	5	4.8	5	4.8	6	–	–	–	–	–	–
JQ	mm	–	–	15	22.5	17.5	31	20	34	–	–	–	–	–	–
KQ	mm	–	–	7		7		10		–	–	–	–	–	–
tQ	mm	–	–	28		33		38.5		–	–	–	–	–	–
Ts	kg	6,800	9,200	8,100	12,190	10,000	17,800	14,000	23,698	18,000	34,125	22,000	43,130	28,000	50,978
Weight	g	630	1,300	790	1,820	1,160	2,800	2,255	4,600	2,730	7,000	4,350	10,000	5,200	13,000

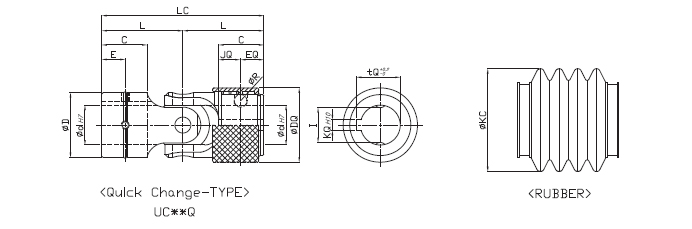

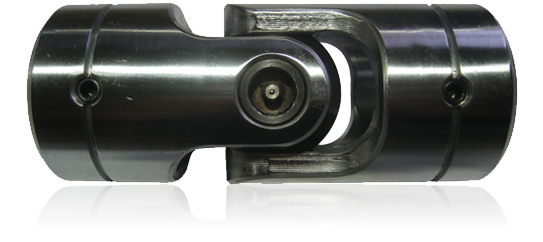

UC-TYPE
